Wilwood Adjustable Proportioning Valve
$135.00
In stock
SKU
.W1C 2608419

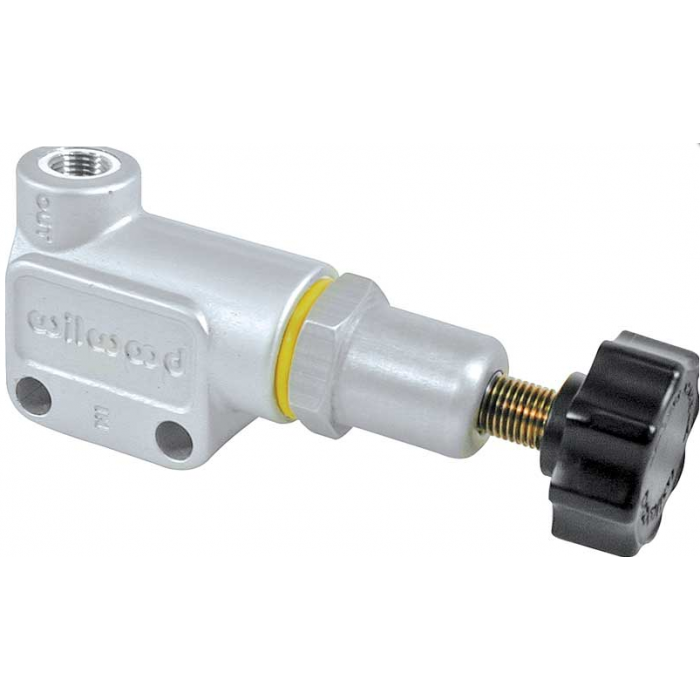

This next generation adjustable proportioning valve from Wilwood combines the latest refinements in manufacturing processes and materials to deliver precise pressure metering and unyielding strength from its compact and lightweight forged billet design.
Precision proportioning from 100 to 1,000 PSI. At full release the valve is capable of up to 57% reduction in line pressure.
The new smaller body accommodates easy mounting in a variety of locations in conjunction with two .25" diameter holes on 1.00" centers.
Along with standard 1/8" NPT inlet and outlet ports and two 1/8" NPT to 3/8-24 inverted flare brake line adapters included with each valve makes installation simple.
Important: Wilwood suggest using DOT 3 or DOT 4 brake fluid in all of their brake components. DO NOT USE: DOT 5 Silicone Fluid.
Precision proportioning from 100 to 1,000 PSI. At full release the valve is capable of up to 57% reduction in line pressure.
The new smaller body accommodates easy mounting in a variety of locations in conjunction with two .25" diameter holes on 1.00" centers.
Along with standard 1/8" NPT inlet and outlet ports and two 1/8" NPT to 3/8-24 inverted flare brake line adapters included with each valve makes installation simple.
Important: Wilwood suggest using DOT 3 or DOT 4 brake fluid in all of their brake components. DO NOT USE: DOT 5 Silicone Fluid.
Adjustment Style:Knob
Inlet Quantity:One
Inlet Attachment:Female threads
Inlet Size:1/8 in. NPT
Outlet Quantity:One Outlet
Attachment:Female threads
Outlet Size:1/8 in. NPT
Minimum psi:100 psi
Maximum psi:3,000 psi
Pressure Reduction (%):57 percent
Proportioning Valve Finish:Natural
Proportioning Valve Material:Aluminum
Quantity:Sold individually.
